PN Male Connector for .141 Cable
P/N: SF6505-6003

In stock at Qty Order
Mouser Electronics 71
Interstate Connecting Components 24
Heilind Electronics 8
Products specifications
Attribute name Attribute value
RF Series PN
Gender Plug (Male)
Termination Style Solder
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 3000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:20:51 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PN
Gender Plug (Male)
Termination Style Solder
Orientation (Body) Straight
Coupling Threaded
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 3000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

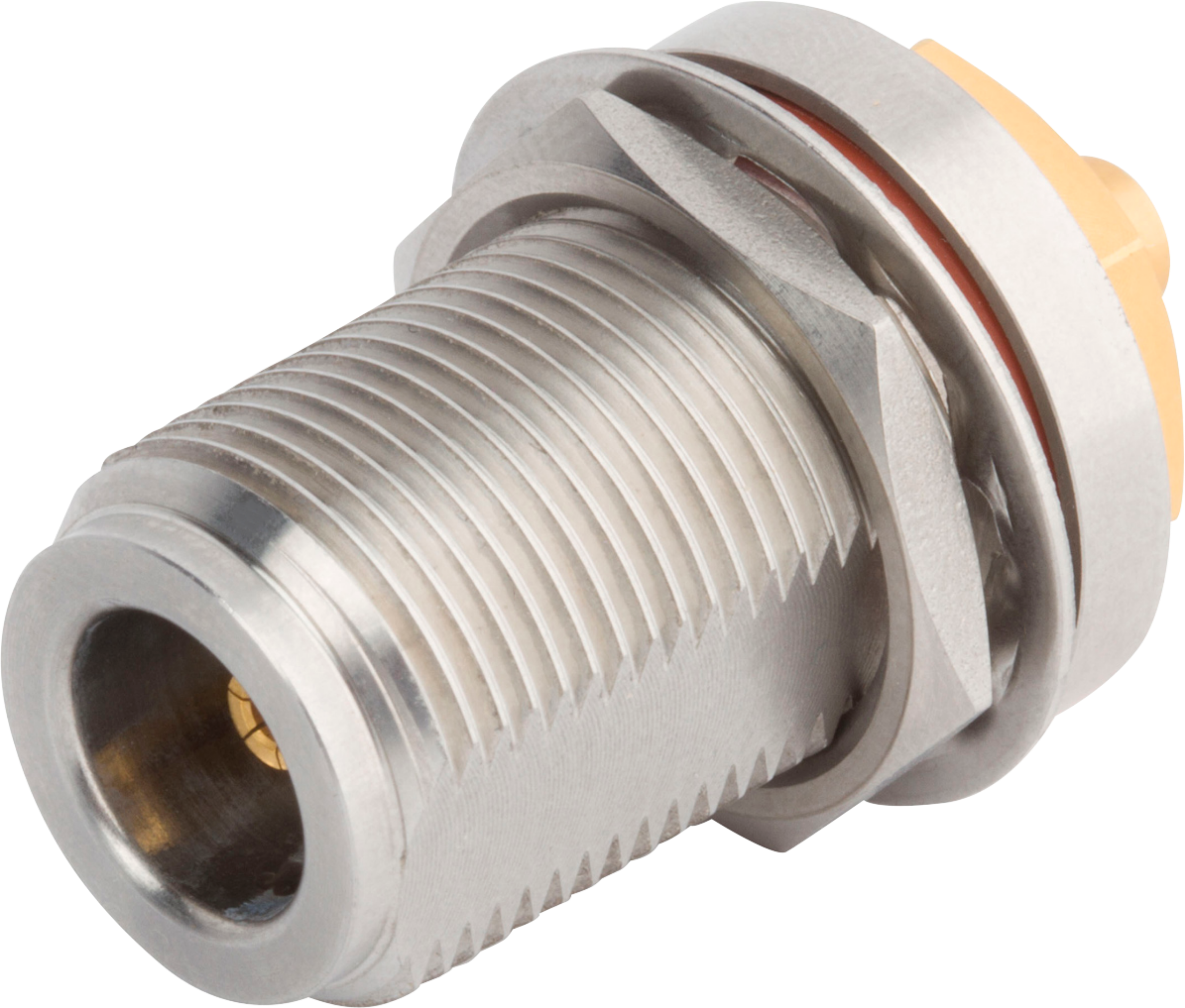

Part #   SF6545-6003

PN Female Bulkhead Connector for .141 Cable

Available Inventory: 191
SF6545-6003
PN Connectors SF6545-6003
Datasheet
Part #   SF6545-6017

PN Female Bulkhead Connector for .085 Cable

Available Inventory: 85
SF6545-6017
PN Connectors SF6545-6017
Datasheet

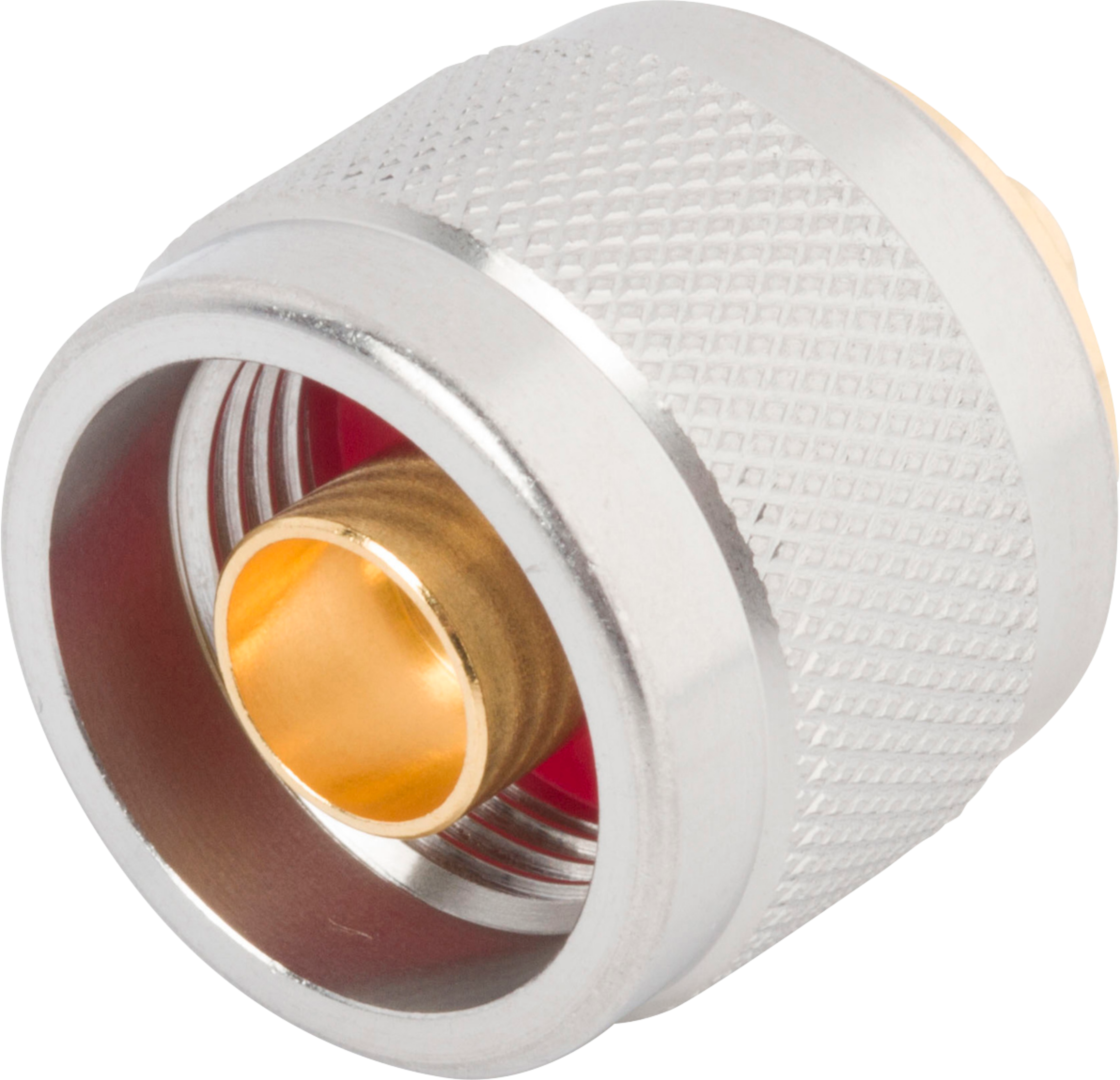

Part #   SF6511-60010
