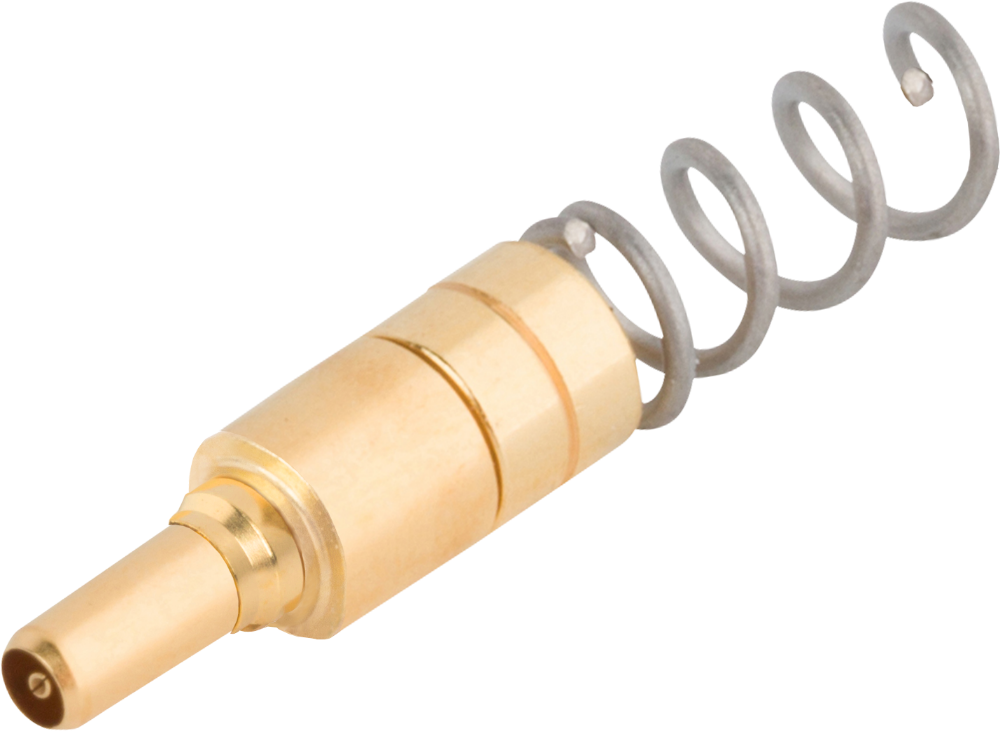

NanoRF Series
 | The NanoRF Series is a high-density, high-frequency push-on interface designed for VITA 67.3 and SOSA-aligned embedded systems. Available in backplane and plug-in contacts, cable assemblies and adapters, NanoRF supports up to 70 GHz performance, making it ideal for high-speed systems like SIGINT, RADAR and UAVs. Used within modular options for both RF and hybrid RF/Fiber configurations, NanoRF provides a versatile, space-efficient solution for next-generation embedded platforms. |
NanoRF
| Impedance (Ω) | 50 |
| Frequency GHz | 70 GHz |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Dielectric Withstanding Voltage | 250 VRMS |
| Mating Cycles | 500 |
| Mating Torque | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
