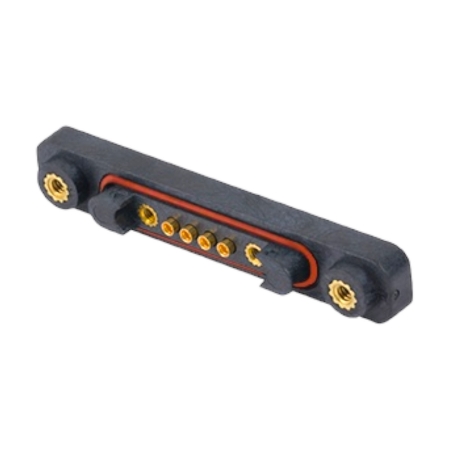

Humboldt Male Flange Mount Connector, 4 Port for .047 Cable
P/N: H14P

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Termination Style Solder
Number of Ports Multiple
Finish Gold
Cable Type 0.047 Flexible Coax
Family Humboldt
Mounting Type Panel
Body Style 2 Hole
Cable Builder Attributes
Mating Connector H14C
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
