BMZ Socket D38999 Contact (Size 8) for RG-174 Cable
P/N: SF9811-60005

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Socket
Orientation (Body) Straight
Coupling Push-on
Style Size 8
Mounting Type D38999 Series I, III and IV
Finish Passivated
Cable Type RG-174
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Not Yet Reviewed

Please contact our compliance team for more information.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:21:33 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Socket
Orientation (Body) Straight
Coupling Push-on
Style Size 8
Mounting Type D38999 Series I, III and IV
Finish Passivated
Cable Type RG-174
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF9321-60007

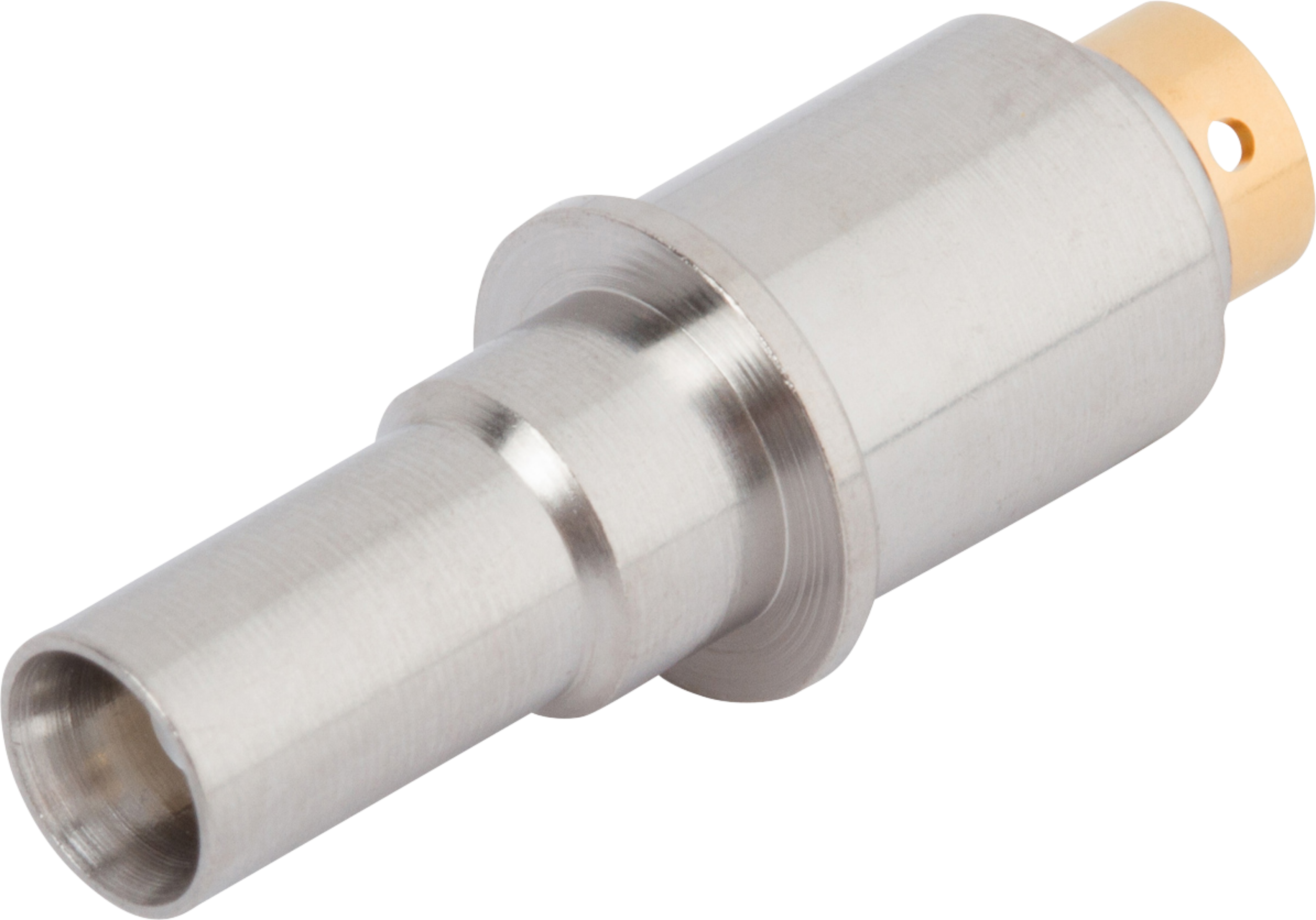

BMZ Pin D38999 Contact (Size 8) for RG-174 Cable

Available Inventory: 0
SF9321-60007
BMZ Connectors SF9321-60007
Datasheet
Part #   SF9811-6001

BMZ Socket D38999 Contact (Size 8) for .140 Cable

Available Inventory: 2
SF9811-6001
BMZ Connectors SF9811-6001
Datasheet
Part #   SF9811-6002

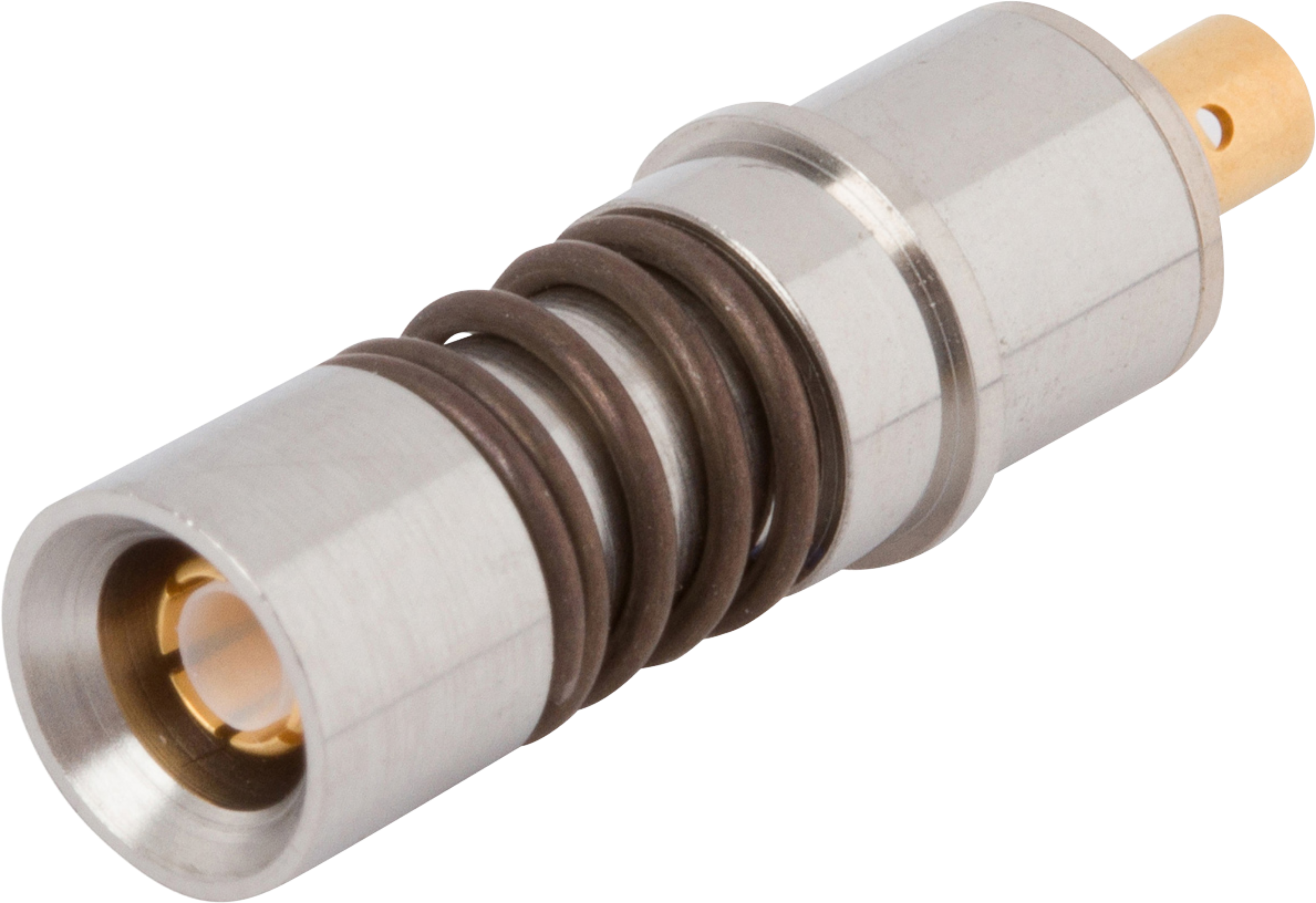

BMZ Socket D38999 Contact (Size 8) for RG-58 Cable
