BMZ (Size 8) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
P/N: 7093-0280

In stock at Qty Order
Newark 25
Farnell 25
Mouser Electronics 24
Products specifications
Attribute name Attribute value
RF Series BMZ
Orientation (Body) Straight
Gender Pin
Coupling Push-on
Style Size 8
Mounting Type D38999
RF Series 2 MCX
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type RG-179
Cable Length 12"
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:29:01 AM
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Orientation (Body) Straight
Gender Pin
Coupling Push-on
Style Size 8
Mounting Type D38999
RF Series 2 MCX
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type RG-179
Cable Length 12"
Electrical
Frequency 3 GHz
Impedance 75 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

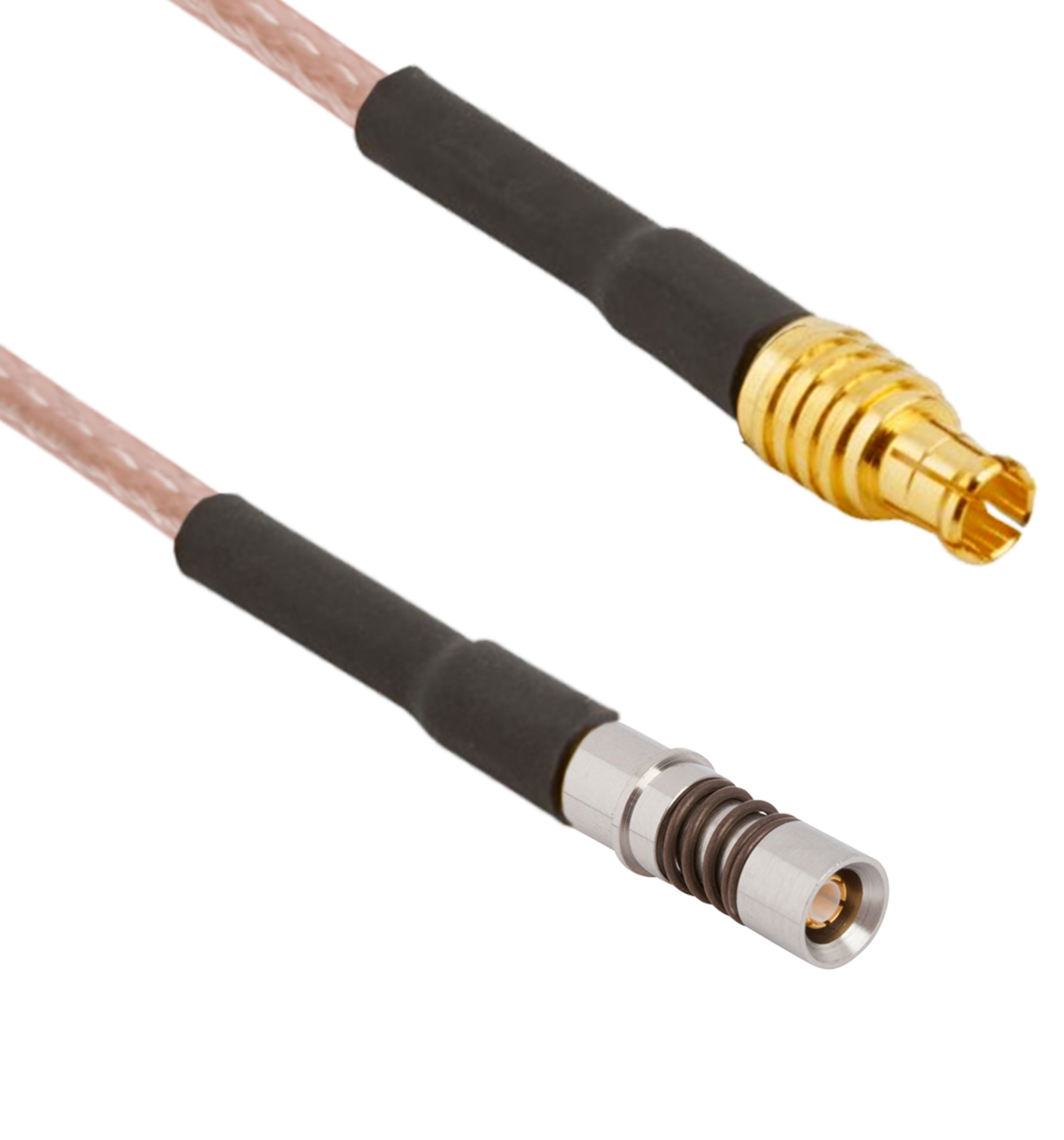

7093-0279
