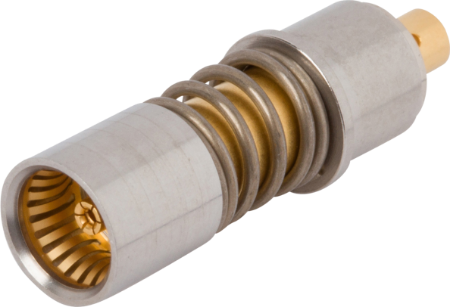

BMA Socket D38999 Contact (Size 8) for .141 Cable
P/N: SF9411-6001

Loading...
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Socket
Orientation (Body) Straight
Mounting Type D38999 Series I, III and IV
Coupling Push-on
Style Size 8
Cable Type 0.140 Flexible Coax
Finish Passivated
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Insertion Force 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Socket
Orientation (Body) Straight
Mounting Type D38999 Series I, III and IV
Coupling Push-on
Style Size 8
Cable Type 0.140 Flexible Coax
Finish Passivated
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Insertion Force 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF9411-6000

BMA Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 255
SF9411-6000
BMA Connectors SF9411-6000
Datasheet
Part #   SF9421-6000

BMA Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 1144
SF9421-6000
BMA Connectors SF9421-6000
Datasheet
Part #   SF9421-6001

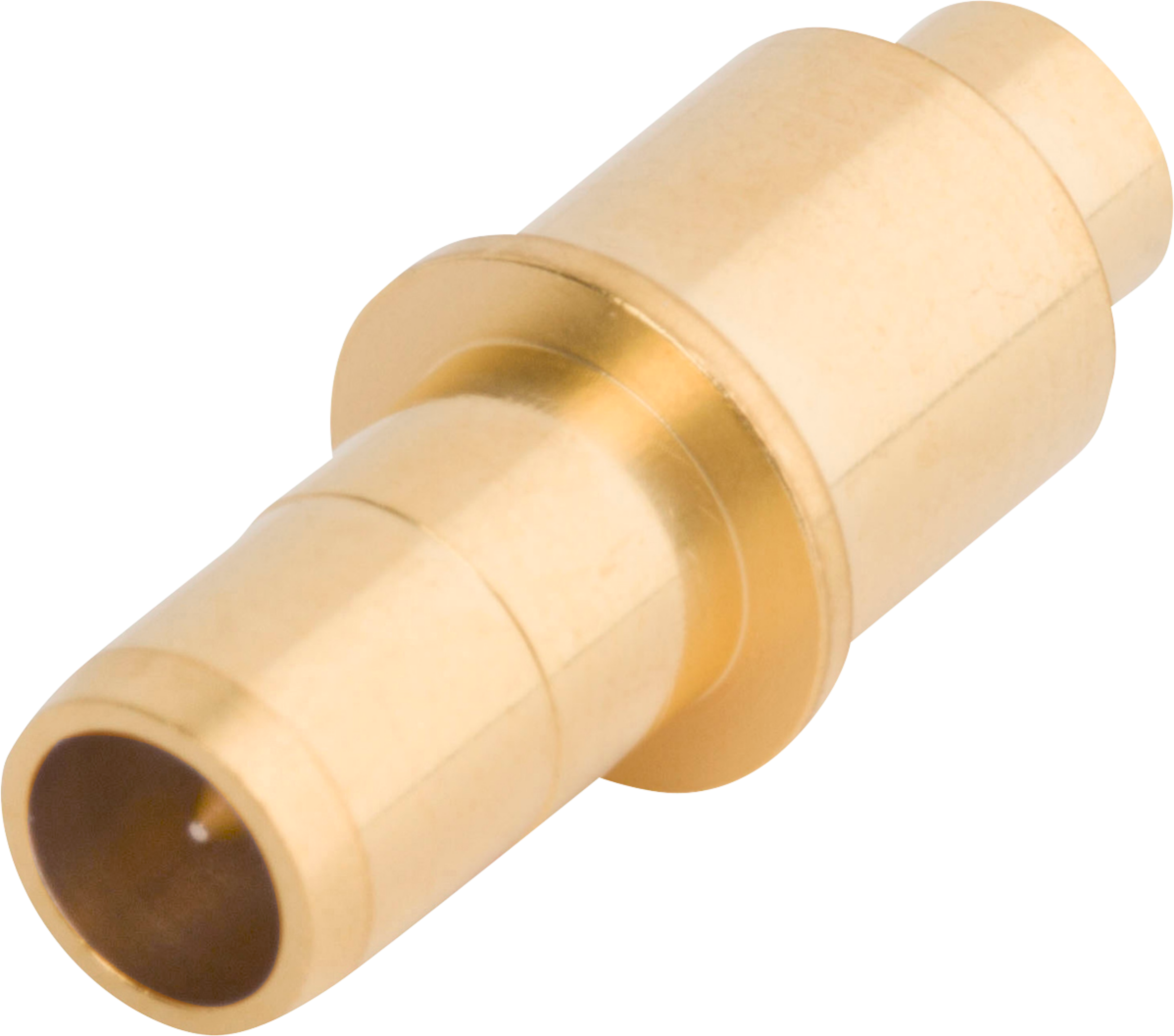

BMA Pin D38999 Contact (Size 8) for .141 Cable
