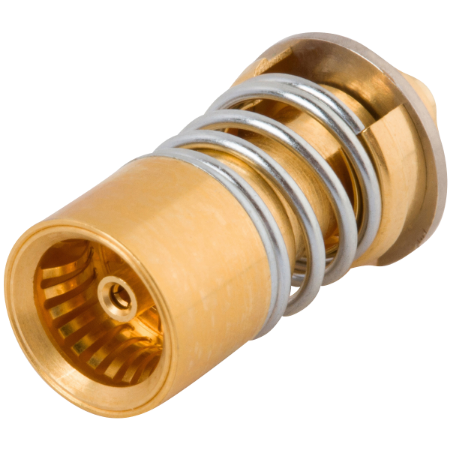

BMA Female Termination
P/N: 8017-6002

Loading...
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Number of Ports Single
Electrical
Frequency 12 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series BMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Number of Ports Single
Electrical
Frequency 12 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Mating Cycles 5000
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

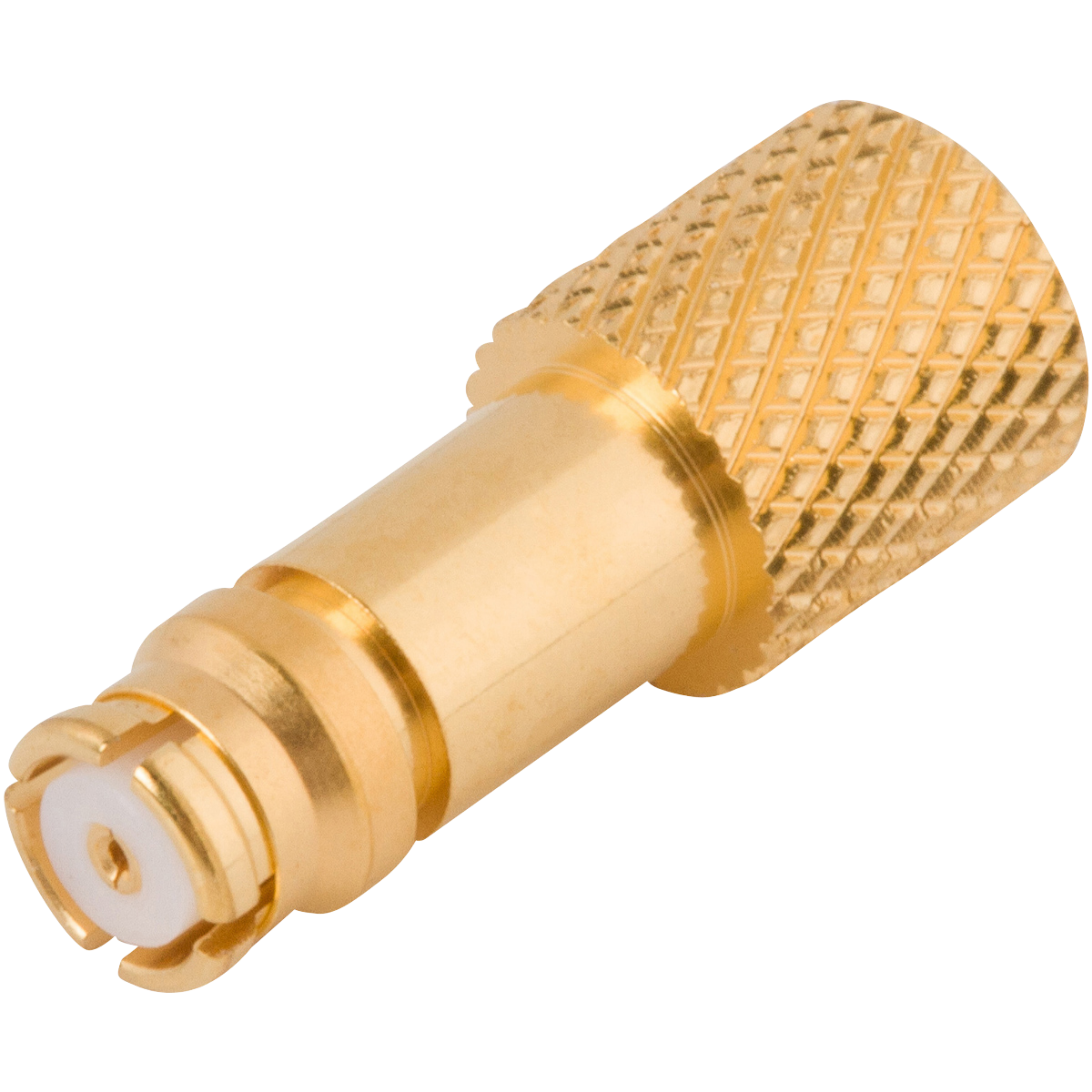

Part #   8012-4006

SMP Female Termination (1/2 Watt)

Available Inventory: 54
8012-4006
SMP Components 8012-4006
Datasheet

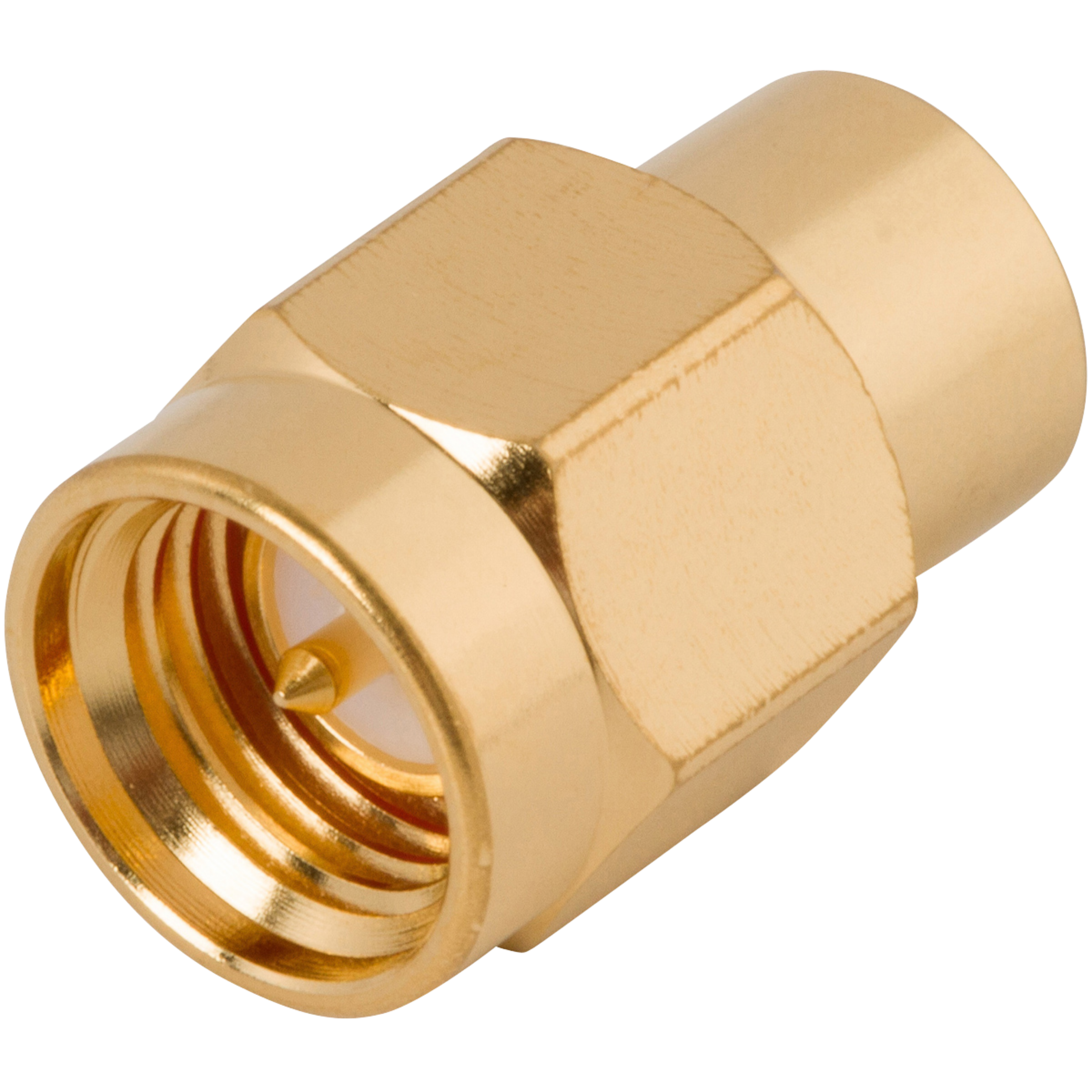

Part #   8018-6005

SMA Male Termination

Available Inventory: 4446
8018-6005
SMA Components 8018-6005
Datasheet

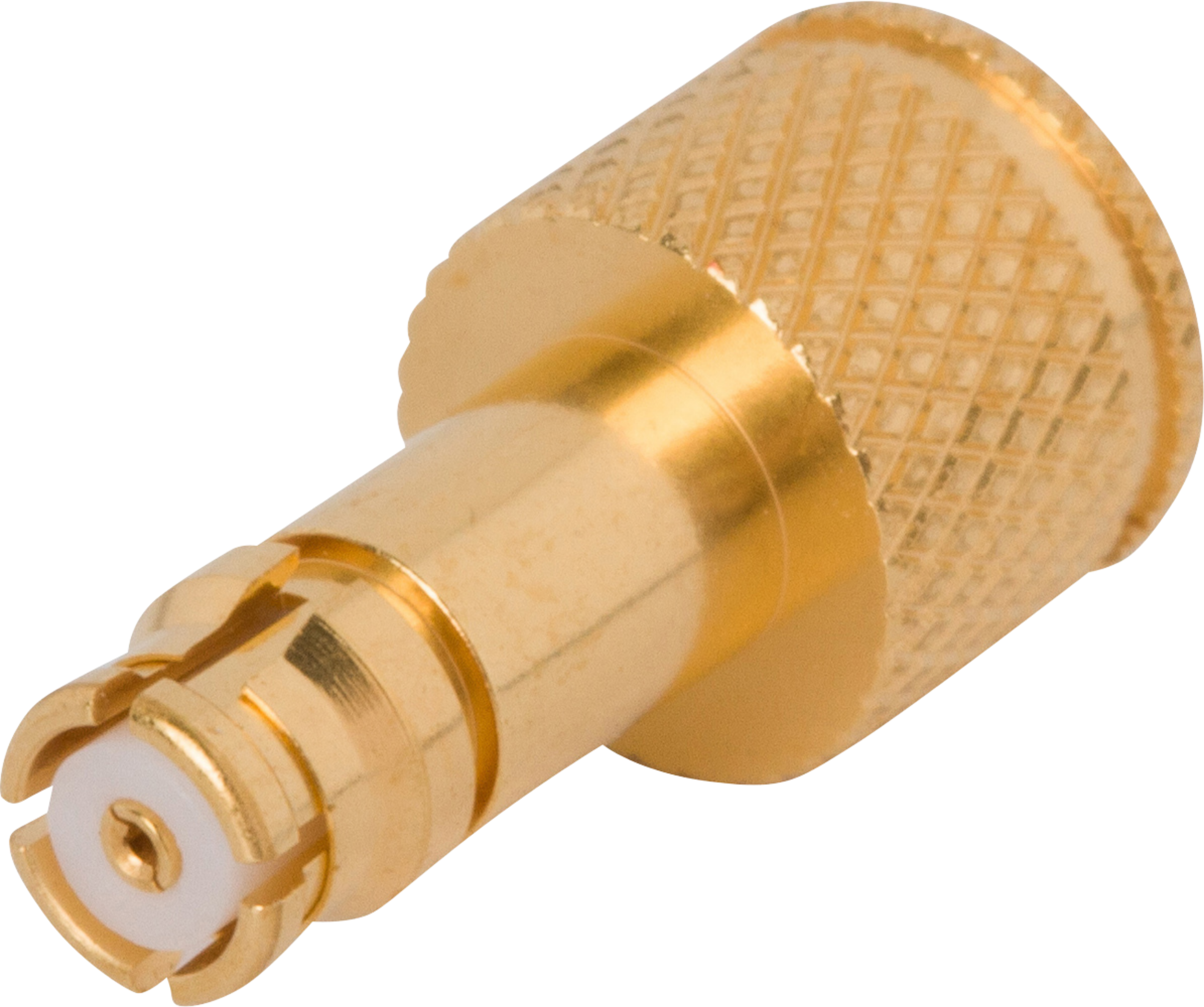

Part #   8012-4013
