3mm Male PCB Surface Mount Shroud (Solder-On), SB
P/N: 012-80-485/185

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Insertion Force - FD 3.4 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:22:04 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Insertion Force - FD 3.4 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

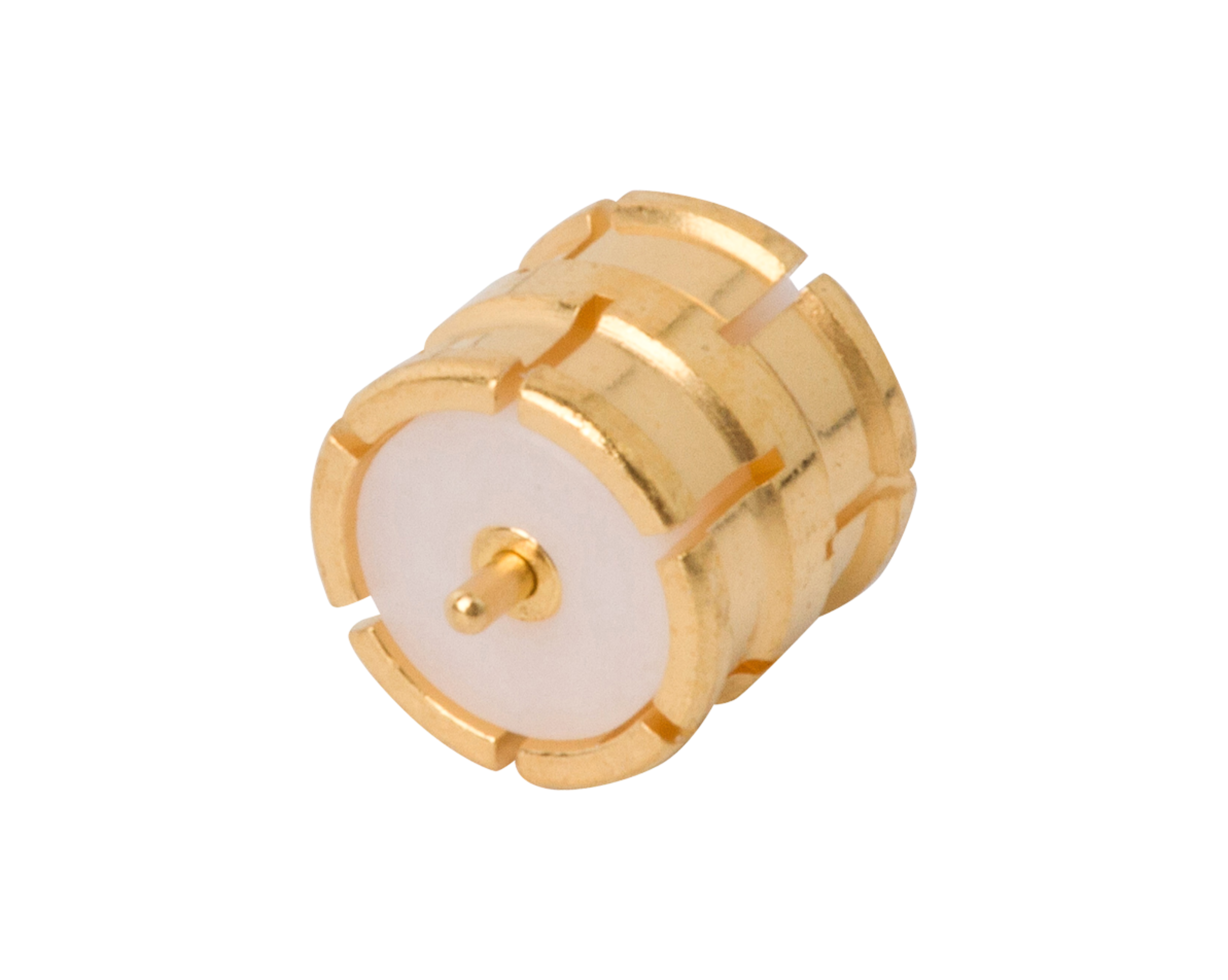

Part #   1180-4009

3mm Female to Female Bullet

Available Inventory: 122
1180-4009
3mm Adapters 1180-4009
Datasheet

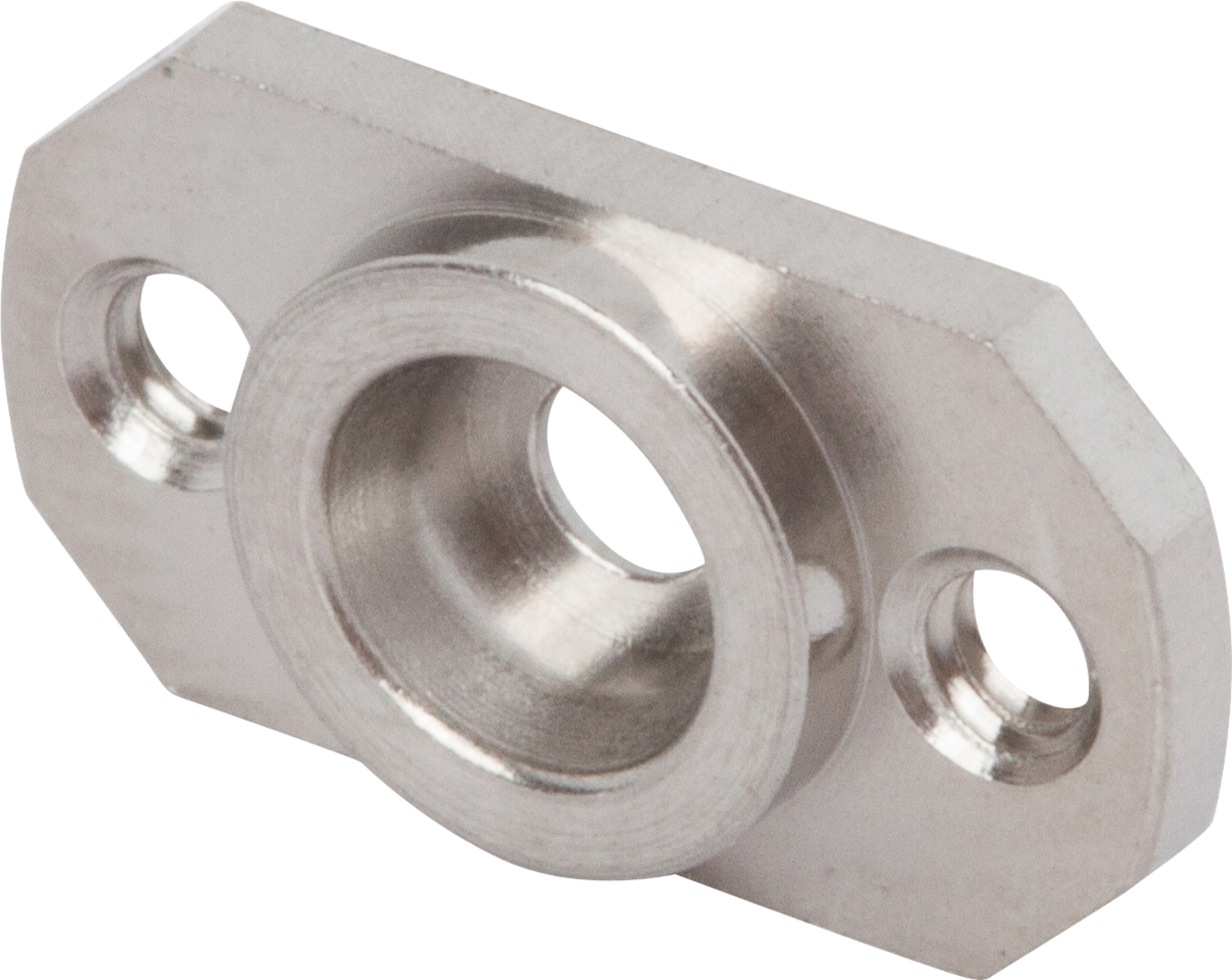

Part #   012-80-487/020

3mm Male PCB Solderless Surface Mount Shroud, SB

Available Inventory: 358
012-80-487/020
3mm Connectors 012-80-487/020
Datasheet

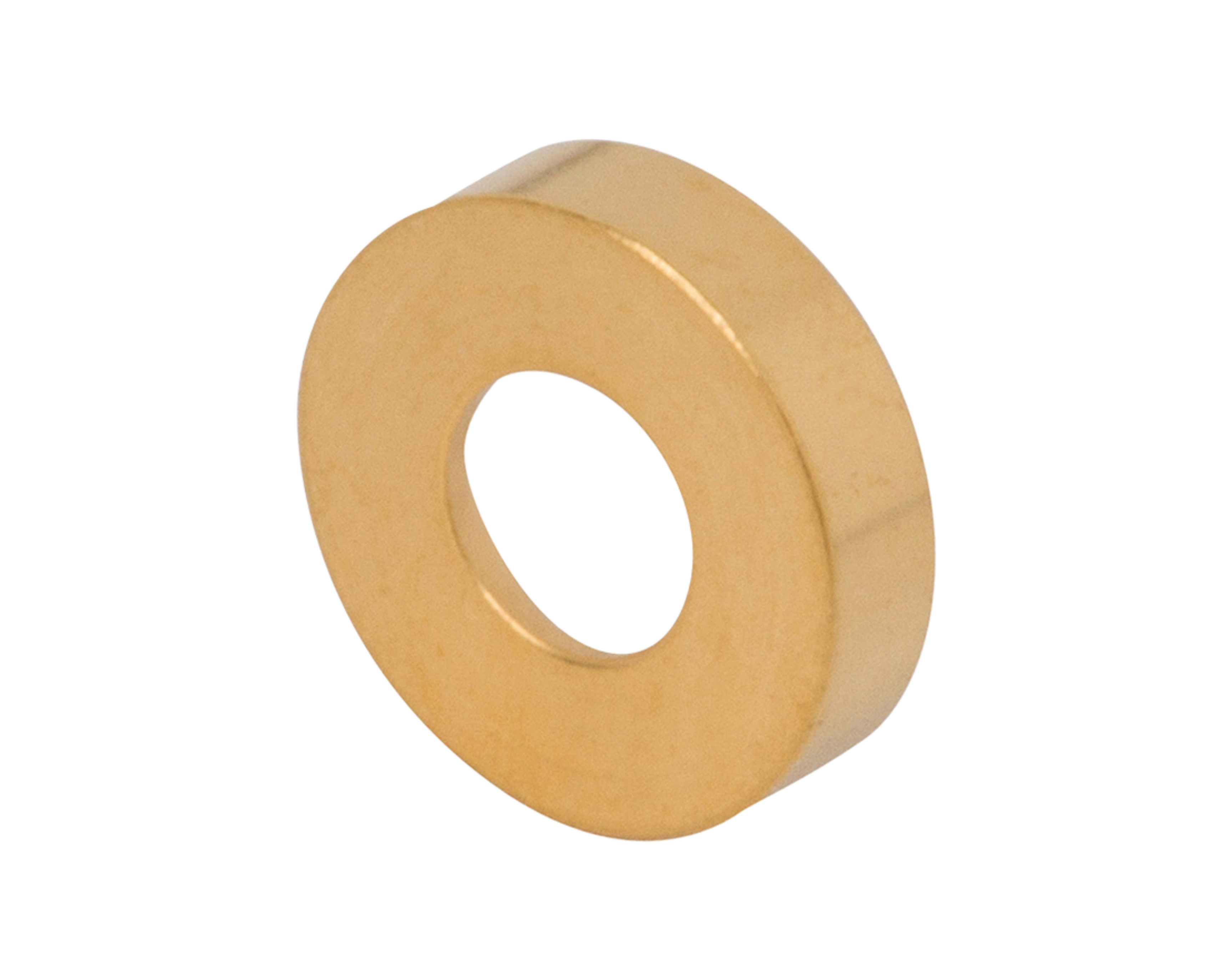

Part #   012-80-484/185
