30° Solderless PCB Compression Mount Connectors

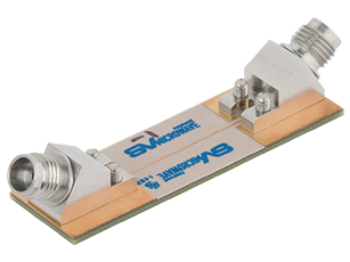

Picture for category 30° Solderless PCB Compression Mount Connectors

SV Microwave has released a new line of PCB connectors with a brand-new body orientation angled 30° away from the PCB. The body of these connectors has been thoughtfully designed to improve the electrical performance over the standard Surface Mount PCB connectors. Achieve Edge Launch-like performance anywhere on the board!

Grid List
Filters
per page
1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°, 3322-60003
Part #   3322-60003

1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°

Available Inventory: 92
3322-60003
1.85mm Connectors 3322-60003
Datasheet
2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°, 1622-60002
Part #   1622-60002

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°

Available Inventory: 78
1622-60002
2.4mm Connectors 1622-60002
Datasheet
2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°, 1522-60008
Part #   1522-60008

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole, 30°

Available Inventory: 77
1522-60008
2.92mm Connectors 1522-60008
Datasheet
SMA Female Solderless PCB Compression Mount Connector, 2 Hole, 30°, 2922-61044
Part #   2922-61044

SMA Female Solderless PCB Compression Mount Connector, 2 Hole, 30°

Available Inventory: 118
2922-61044
SMA Connectors 2922-61044
Datasheet
