2.92mm Male to 2.92mm Male Waterproof (IP68 Rated) 6" Cable Assembly for .085 Cable
P/N: 7015-1073

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Style Waterproof
RF Series 2 2.92 mm
IP Rating IP 68
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:09:18 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Style Waterproof
RF Series 2 2.92 mm
IP Rating IP 68
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

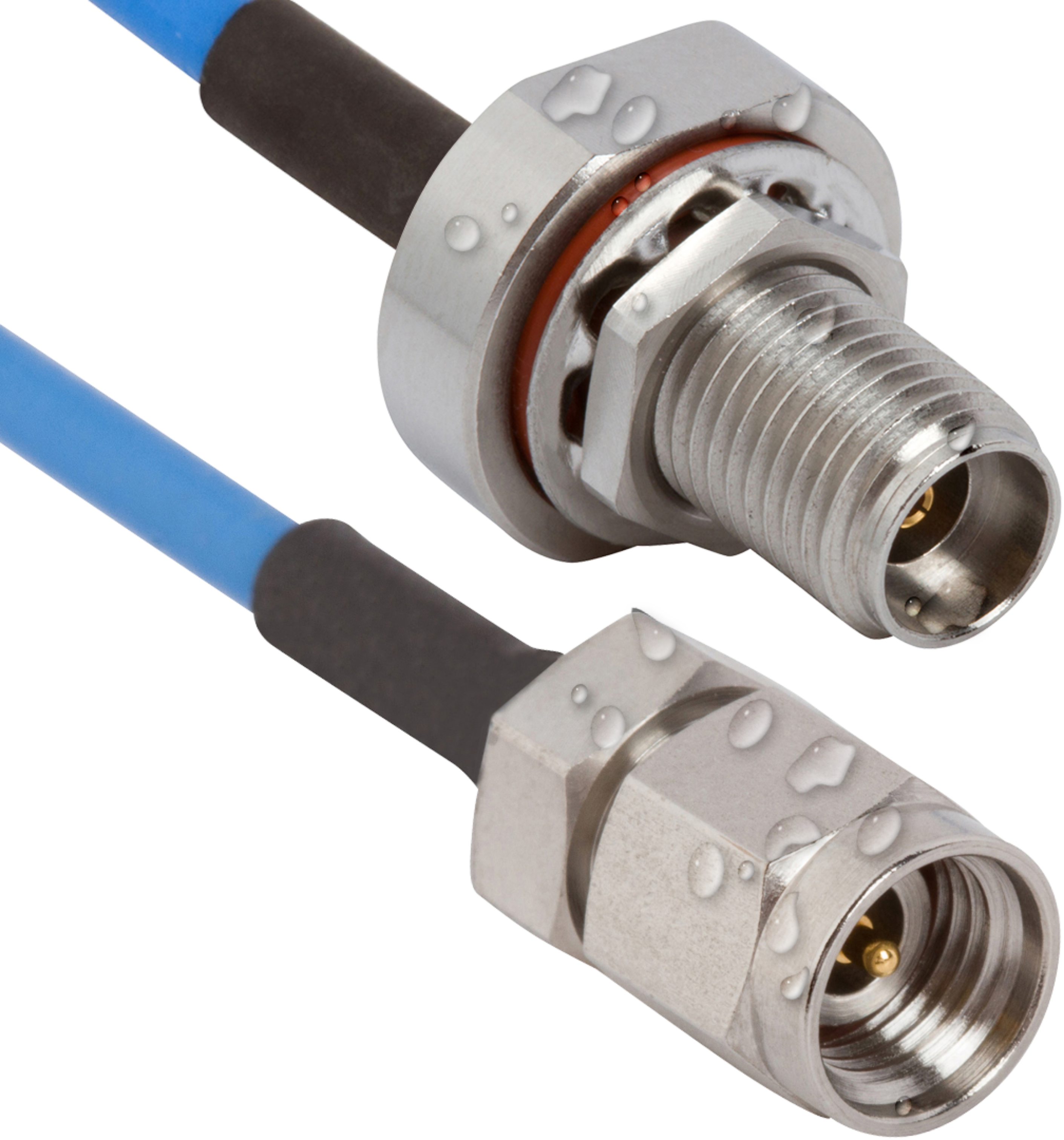

7015-1074
2.92mm Cable Assemblies 7015-1074
Datasheet
7015-1050
2.92mm Cable Assemblies 7015-1050
Datasheet

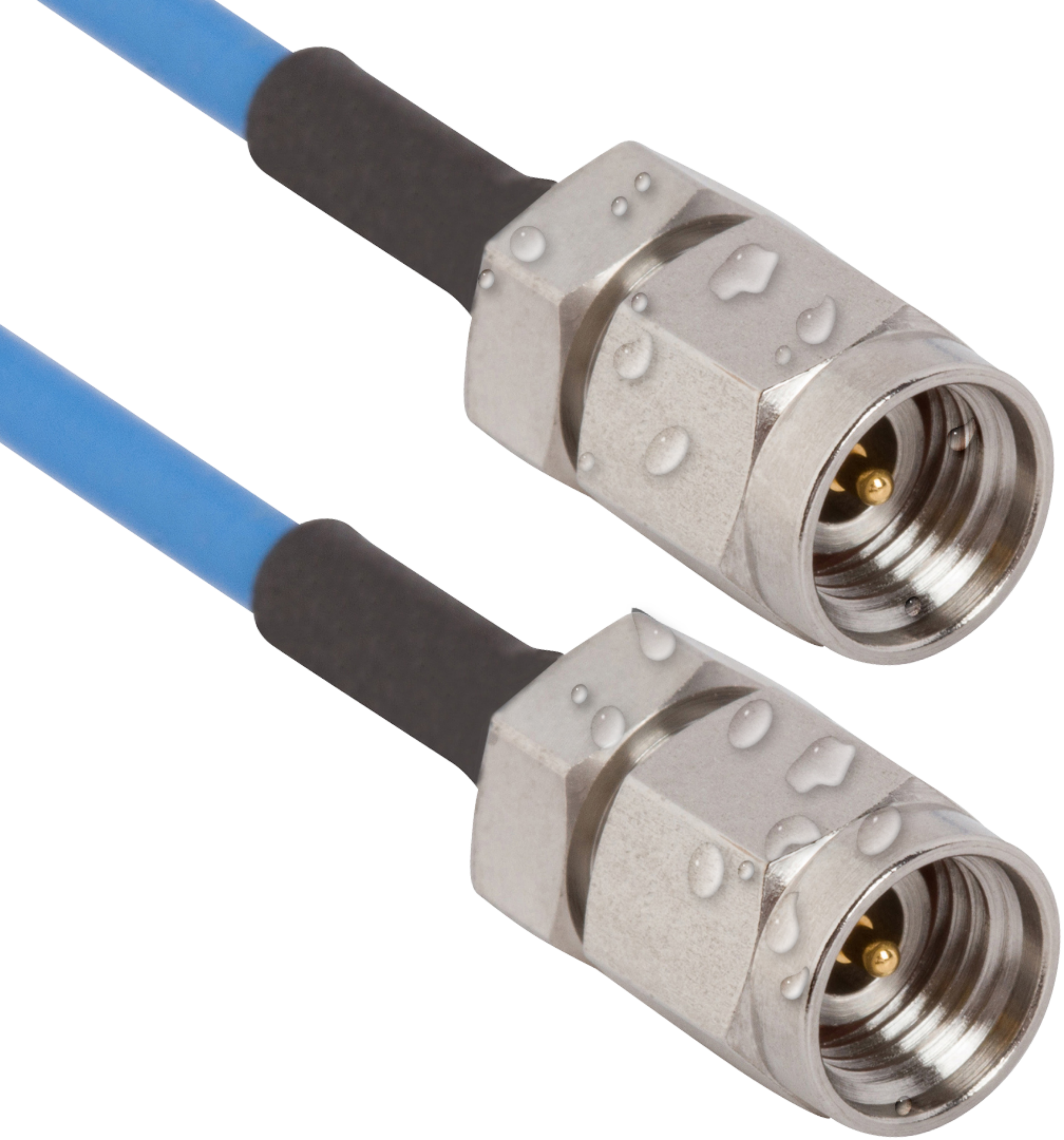

7015-1051
