2.4mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)
P/N: SF1621-60049

In stock at Qty Order
Digi-Key Electronics 792
Interstate Connecting Components 153
Mouser Electronics 99
Heilind Electronics 51
Master Electronics 50
Onlinecomponents.com 50
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Intermateability 1.85mm
Mating Torque 5 - 7 in - lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:25:35 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Intermateability 1.85mm
Mating Torque 5 - 7 in - lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Product tags
Customers Also Viewed

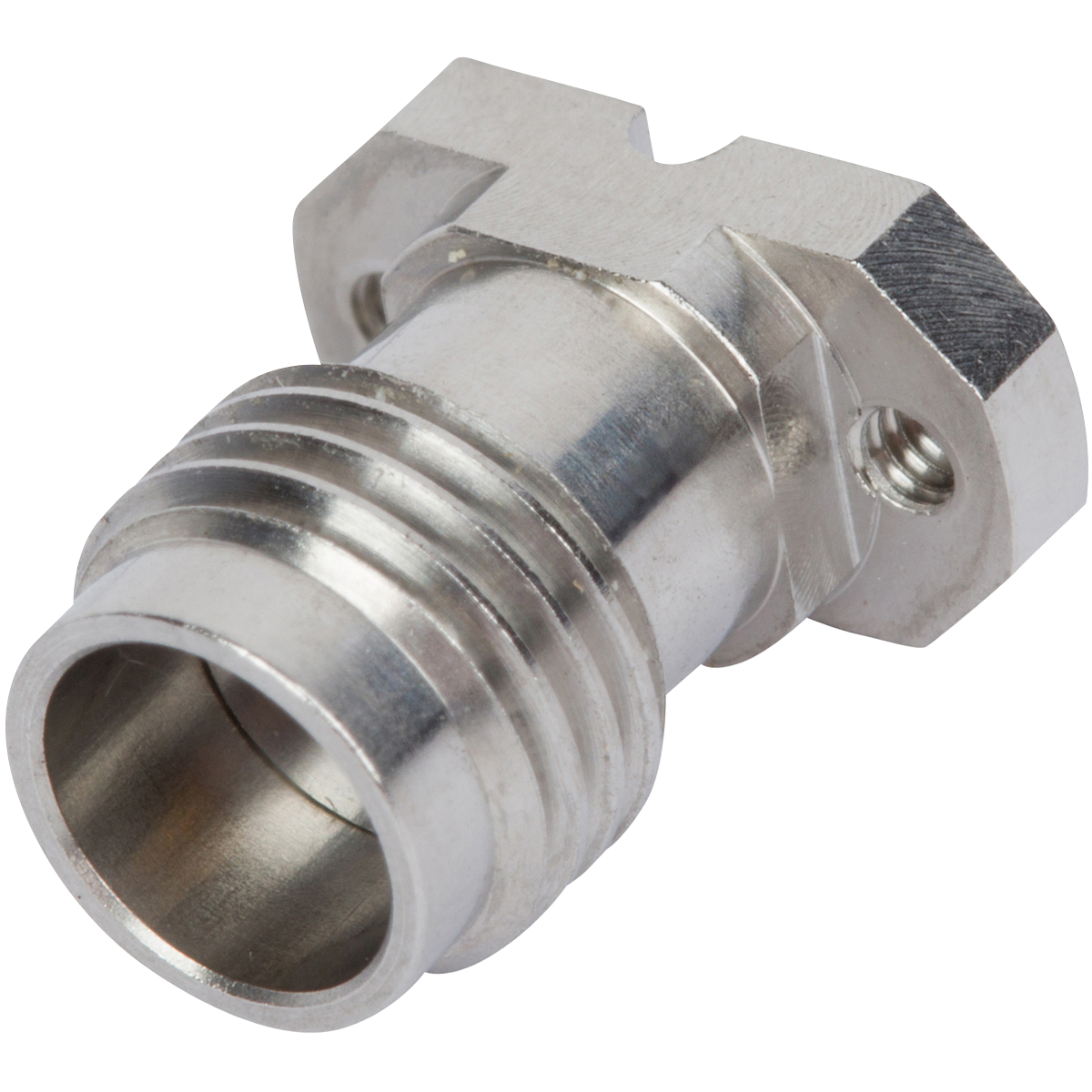

SF1621-60048
2.4mm Connectors SF1621-60048
Datasheet

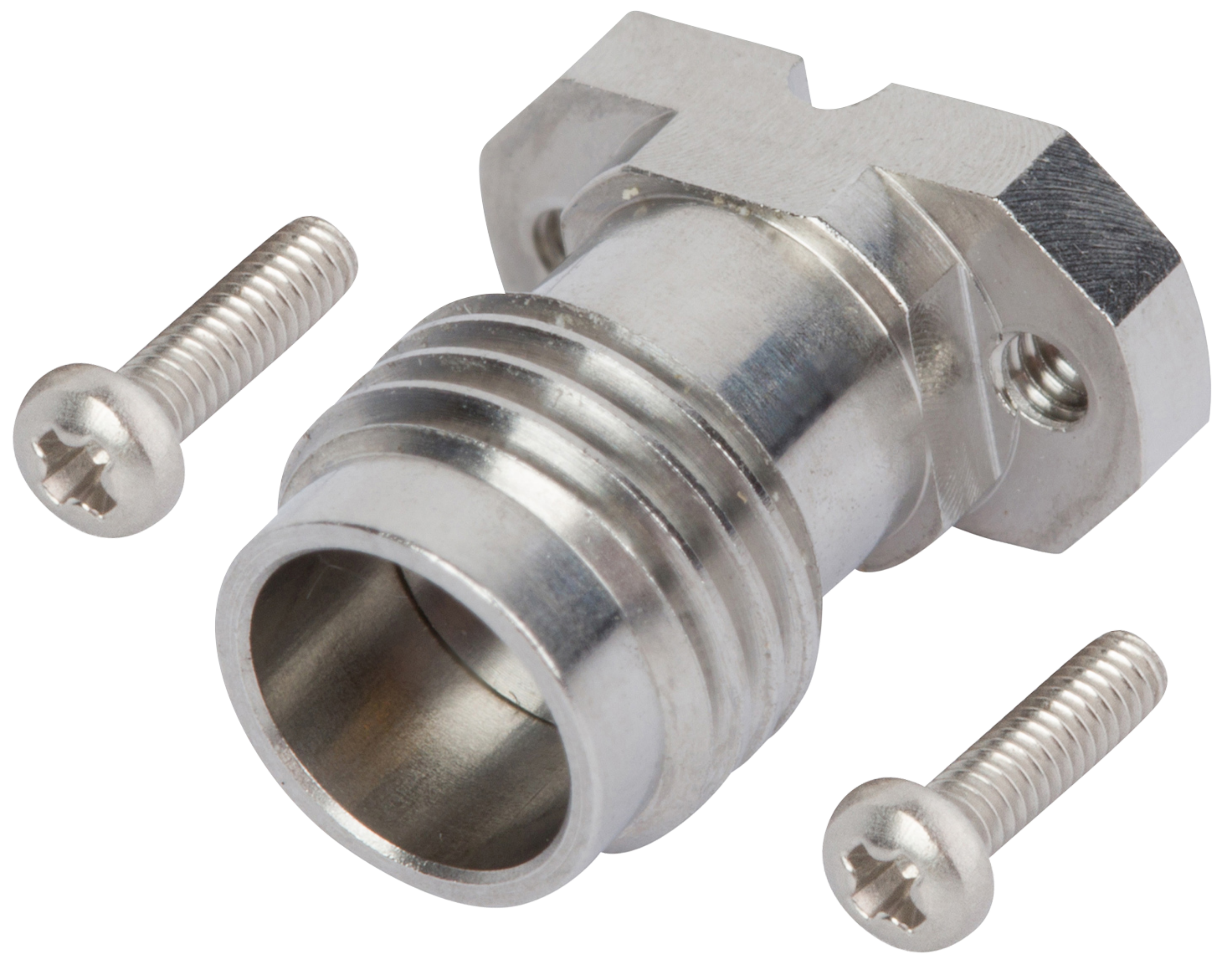

SF1621-60048-1S
2.4mm Connectors SF1621-60048-1S
Datasheet

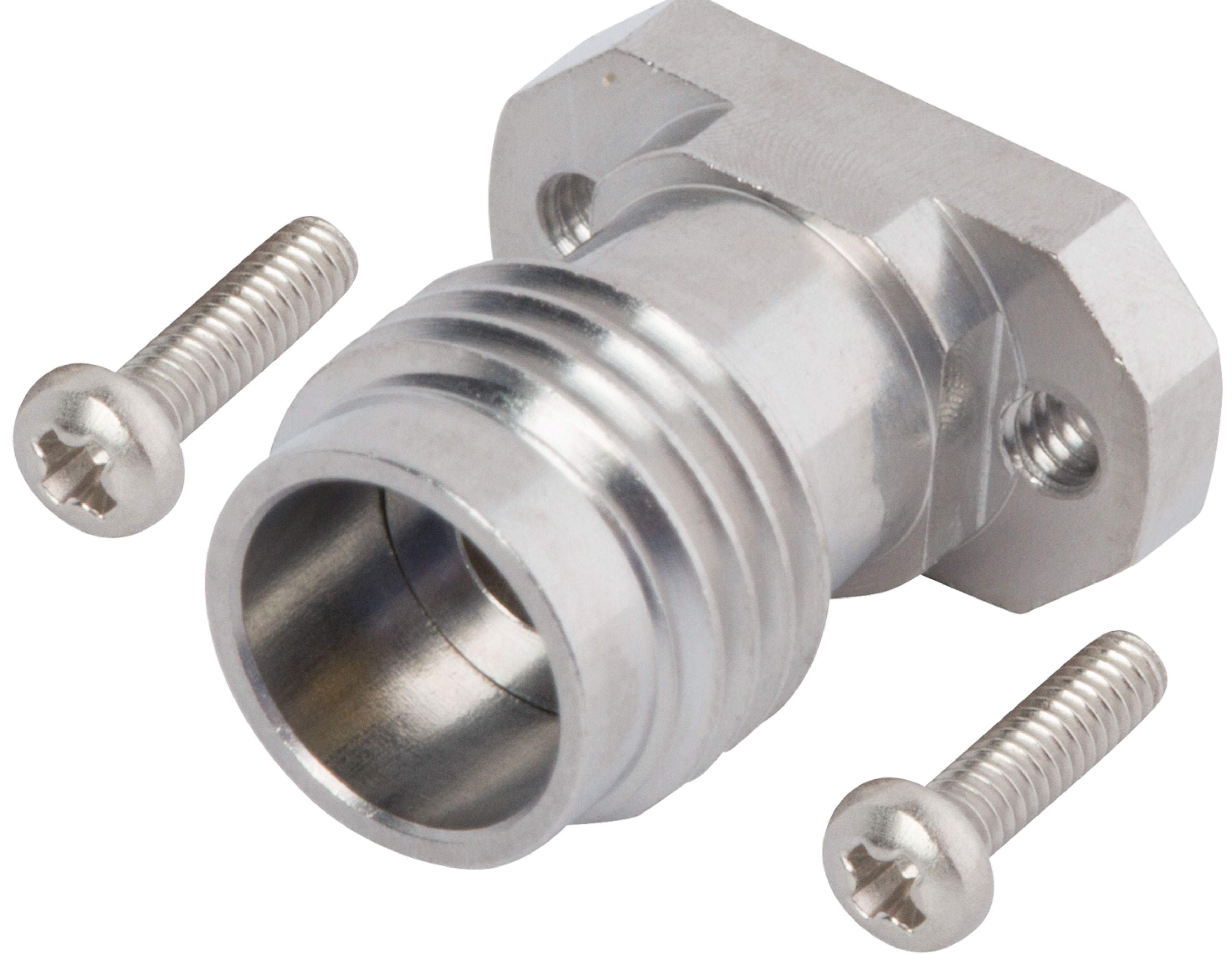

SF1621-60049-1S
