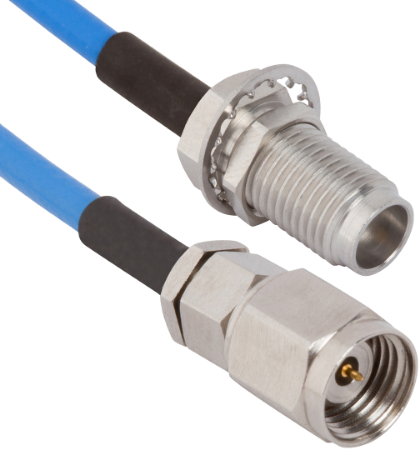

Name: 2.4mm Female Bulkhead to 2.4mm Male 6" Cable Assembly for .085 Cable
SKU: 7016-0127
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	2.4 mm
Coupling	Threaded
Orientation (Body)	Straight
RF Series 2	2.4 mm
Orientation 2 (Body)	Straight
Cable Type	0.085 Flexible Coax
Gender	Jack (Female)
Gender 2	Plug (Male)
Cable Length	6"
Body Style	Jamnut/Bulkhead
Electrical
Frequency	50 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Torque	5 - 7 in - lbs
Mating Cycles	500
Intermateability	1.85mm
Environmental
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Compliant This products meets the requirements for CE and UKCA.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 5/16/2025 1:09:19 AM

2.4mm Female Bulkhead to 2.4mm Male 6" Cable Assembly for .085 Cable
P/N: 7016-0127

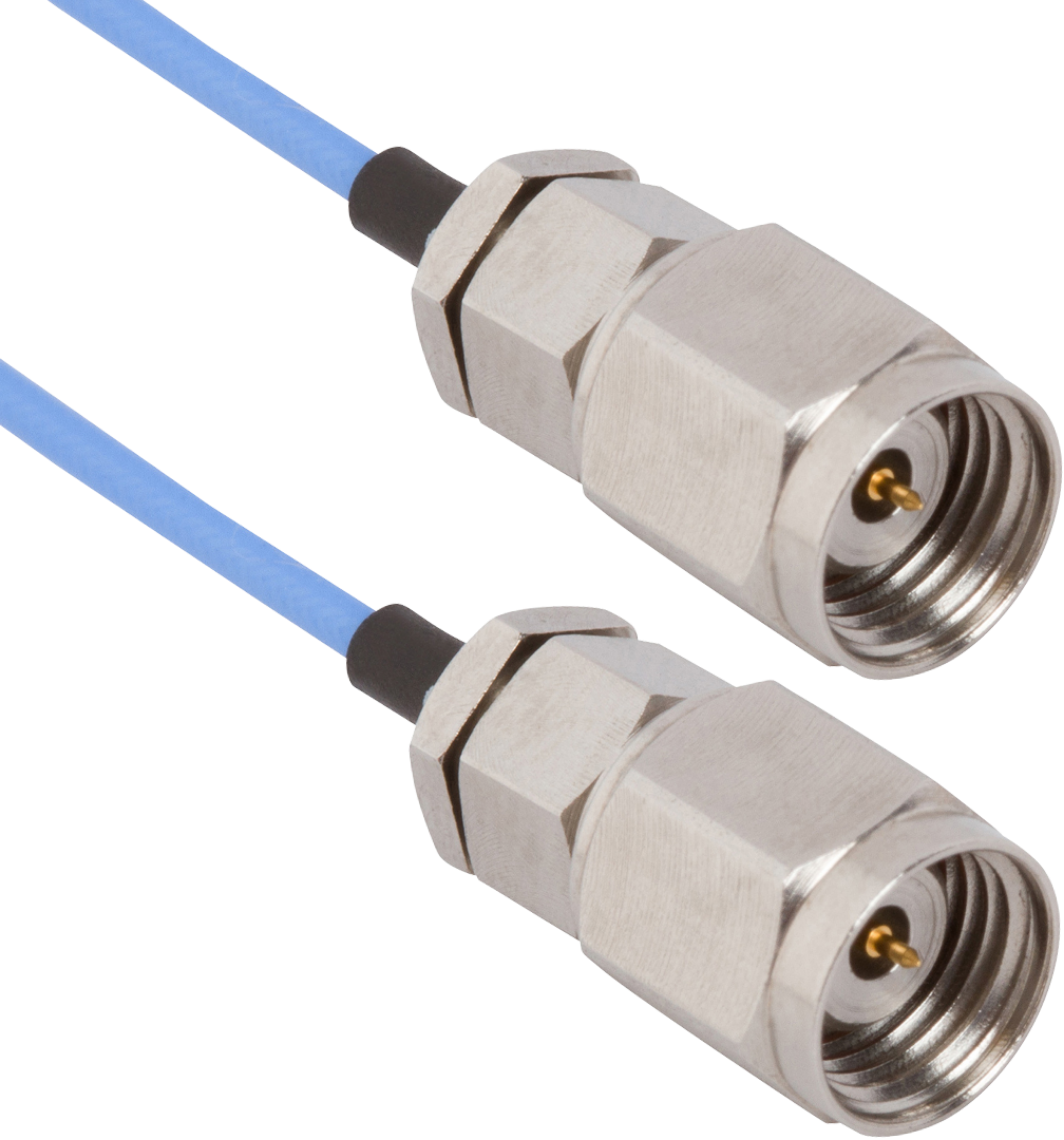

2.4mm Male to 2.4mm Male 6" Cable Assembly for .047 Cable
