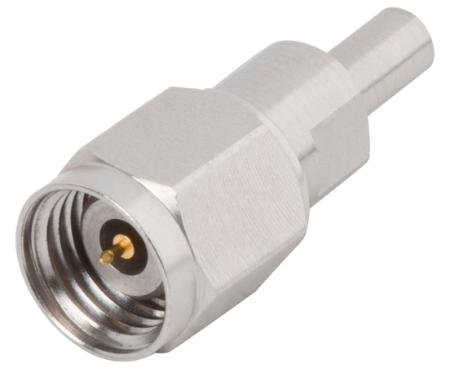

1.85mm Male to SMPS Male Adapter, FD
P/N: 1138-6048

Loading...
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed

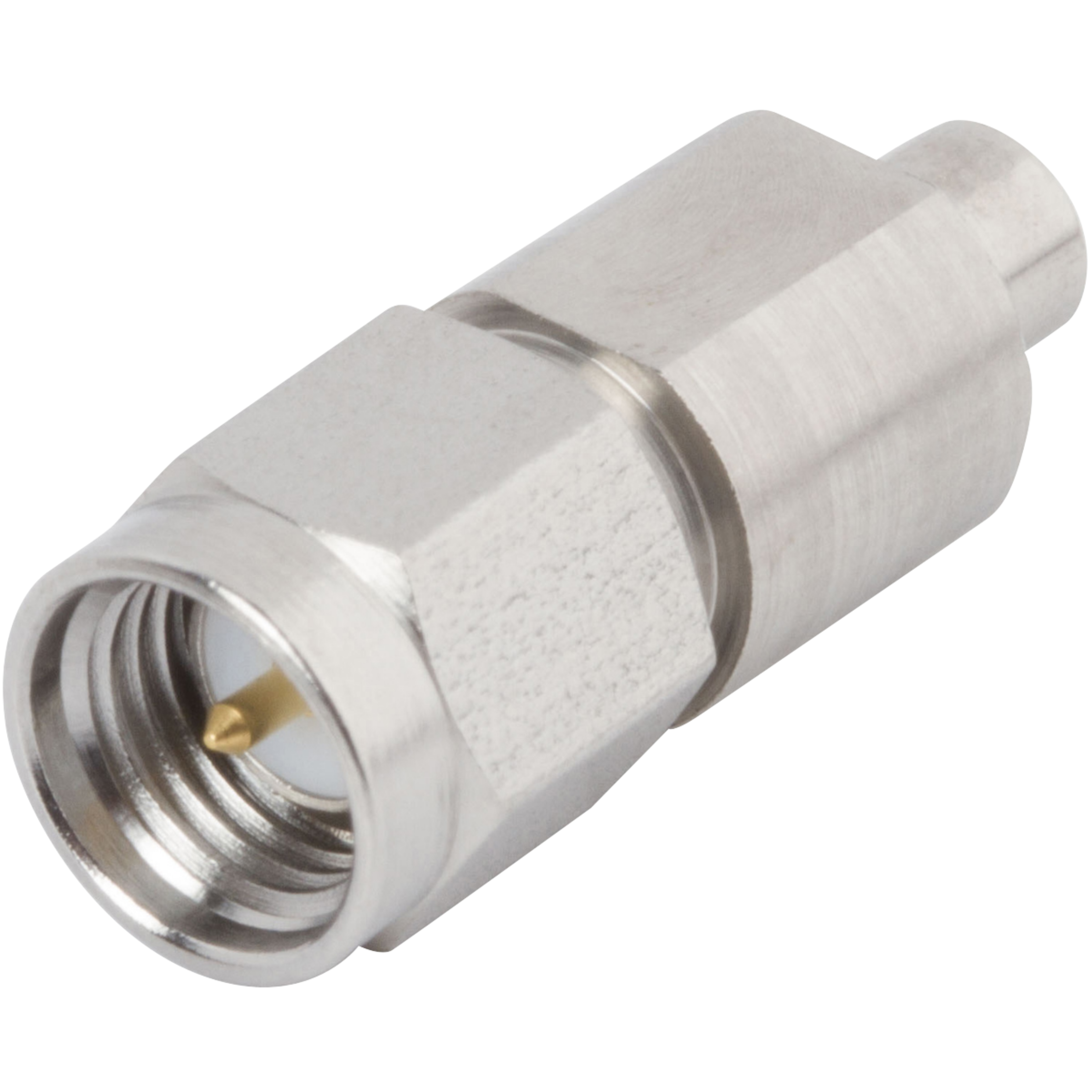

Part #   SF1080-6004

SMA Male to SMPM Male Adapter, SB

Available Inventory: 40
SF1080-6004
SMA Adapters SF1080-6004
Datasheet

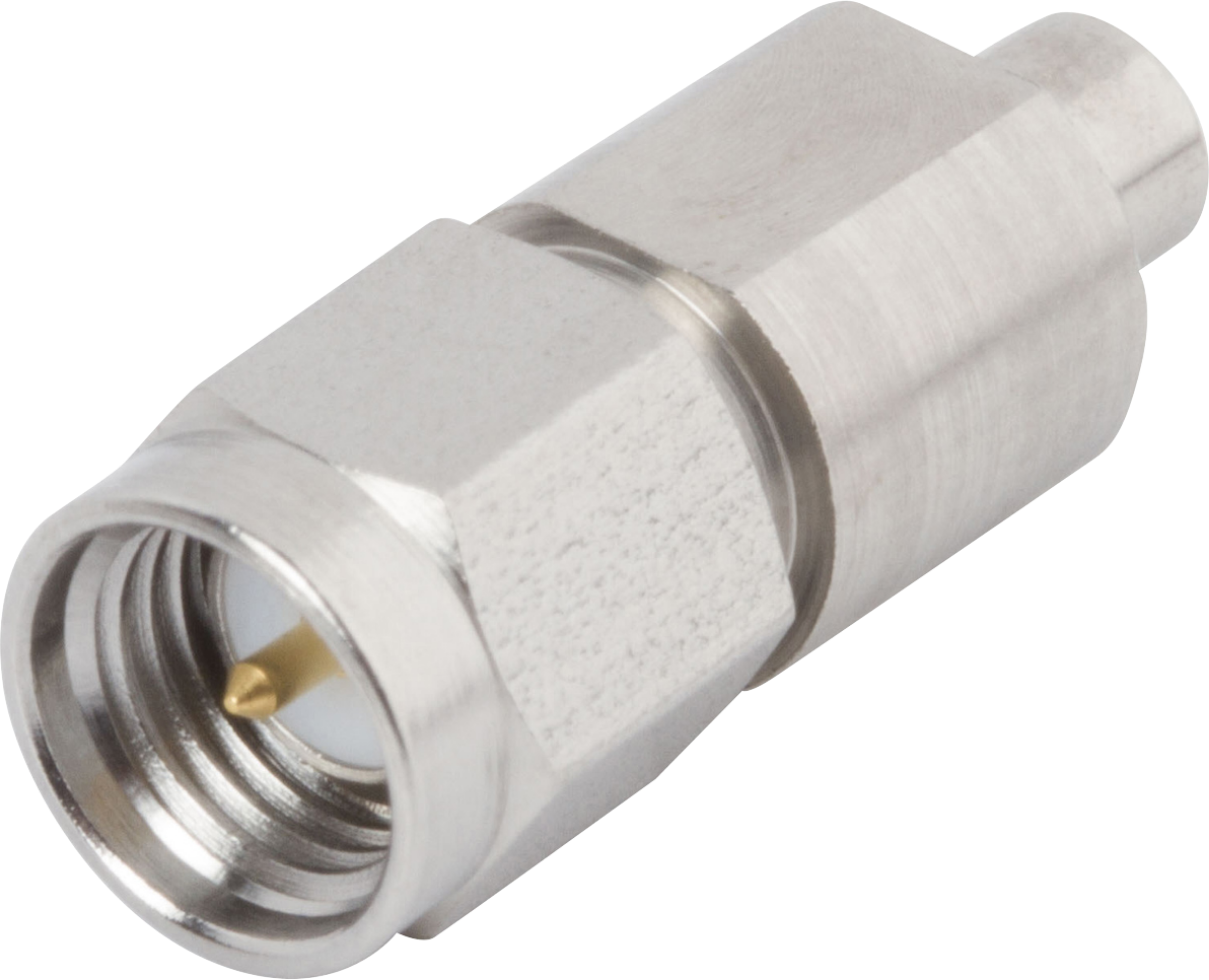

Part #   SF1080-6005

SMA Male to SMPM Male Adapter, FD

Available Inventory: 126
SF1080-6005
SMA Adapters SF1080-6005
Datasheet

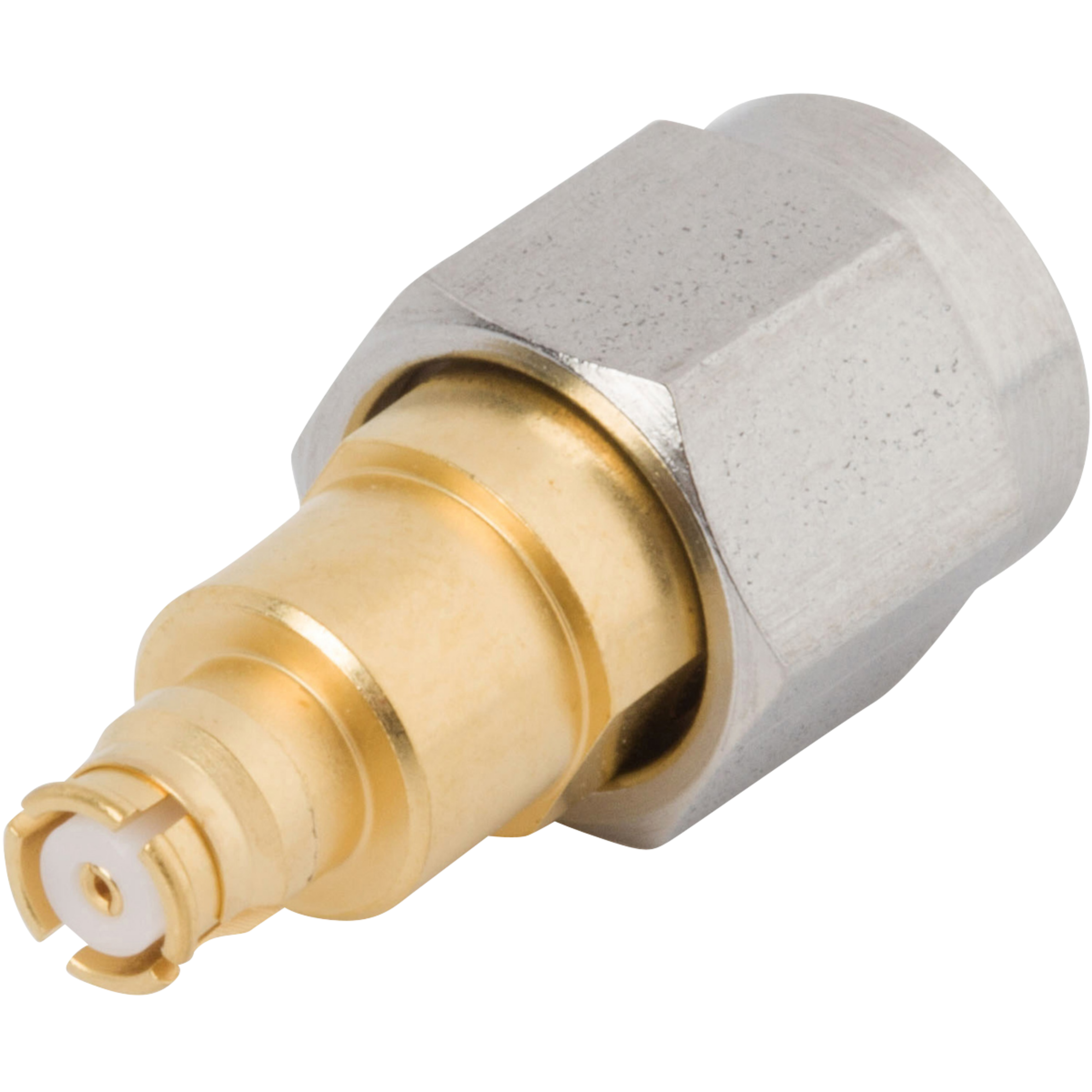

Part #   SF1129-6154
